World's best thread about grinders...

[Erin Burke]

IG,

Do you have any closer photos showing how you raise/lower the contact wheel?

Erin



[Indian George]

IG,

Do you have any closer photos showing how you raise/lower the contact wheel?

Erin

See the blue milling table that is mounted vertical that is the up and down axis.
If you have any ??? feel free to call me. No later than 8:00pm EST. I need all the beauty rest I can get and then some. HEHEHEHEHE!!!!
Cell 508 951 2719



[whiteeugene]

EERF grinder



[LR Adkins]

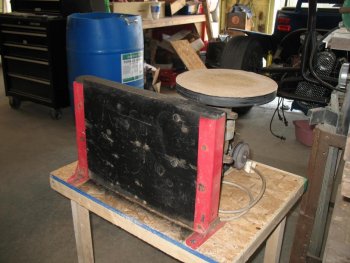

I have three knife grinders, a home built 2x72 basically copied from the NWG, a 1x30 that gets a workout and I just built a funky disc grinder using an old stone grinder.



[Rick Haney Design]

This is my Dozier grinder,The air actuated belt tensioner is pure genius!Built like a tank.2 HP DC motor w/ VFD & Direct drive.Very quiet machine.Pedestal mounted allows a small footprint where space is a concern.
If You can afford the best get a Dozier,Great investment IMO.



[Frstr8]

Great looking grinders gentleman! So many different ways to get to the same place.



I want a grinder! I am gonna have to get a set of plans from Tracy.



[James Terrio]

Someday I will have a real grinder... but this little puppy is keeping me going in the meantime. It's held up surprisingly well.

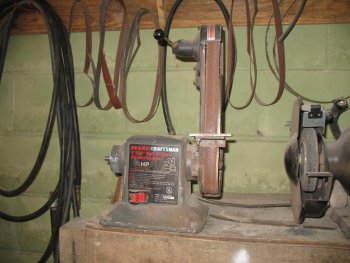

My humble 2x42 Craftsman. I removed the side guards for NASCAR-style fast pit stops and cut away part of the upper guard so I can use the idler as a contact wheel for hogging. The work rest got taken off cuz it was in my way, and I lost it so long ago I no longer miss it LOL. It REALLY needs a ceramic platen liner from USA.... but it does work. I've made a heckuva lotta sparks with this thing and it only cost me about $100.



[airbalancer]

Another "Grinder in a Box"
Cheers
[nomedia="http://www.youtube.com/watch?v=2-QGSBy7f2E"]YouTube- 2 X 72 Belt Grinder[/nomedia]



[Chris Martin]

Another "Grinder in a Box"
Cheers
YouTube- 2 X 72 Belt Grinder

Nice build AB!!!!



[NJStricker]

We are going to make this the world's best thread about knife grinders

Post pictures of your grinders here. Let's see every kind and every gadget that you use with them.



some one sent a couple pic's of their FrankenGrinder....

let's see them..

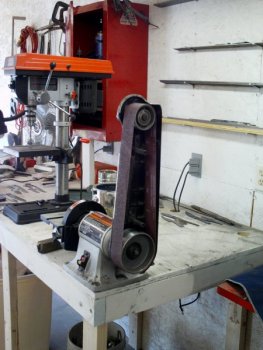

That's the Craftsman 2x42 that I have! Hmmmm. . . might have to make some mods. . .



[KB1SYV]

This is my Grinder...It's a Nicholson 8" Magic Cut. I'm thinking of upgrading to a 12" Nicholson Clone. Don't know yet...

mo moneymo moneymo money
:haha:

Jeff



[Keith Willis]

If you are going to make a knife with that piece of what looks to be round stock, the file is setting on,I would recommend,at least a box of 14'' Flat Bastards to get you started.
Nicholson,would be the best,but I don't think it really matters
Good luck.

God bless,Keith



[KB1SYV]

Actually Keith, that's my window sill mounted knife vise! If that was what I was starting with, I would have quit before I started!!!

Jeff

If you are going to make a knife with that piece of what looks to be round stock, the file is setting on,I would recommend,at least a box of 14'' Flat Bastards to get you started.
Nicholson,would be the best,but I don't think it really matters
Good luck.

God bless,Keith



[Bruce Culberson]

I built a two wheel 2x72 to replace the 1/3hp Craftsman 2x42. Now I can use those legendary Blaze belts

The frame is 3/4" Douglas fir plywood, laminated together with Gorilla glue and wood screws. The 10" contact wheel is from Grizzly, most of the other parts are from Knifemaker USA. The 1hp, 1725rpm motor is from Pricess Auto. I have 3-stack pulleys but will only run it two speeds - 2250fmp, and 4500fpm, the fastest speed of 9000fpm might be a bit scarey and hard on bearings.



[KB1SYV]

Bruce, that is so cool!!! Does it seem as solid as if it would be if made from steel? Did it come out to be significantly cheaper, because of the cost of wood as opposed to steel?

Welcome, by the way!!! You should go introduce yourself in the Intro section, I'm sure your experience will be a welcome addition to this forum!

It's so cool!!!2thumbs2thumbs2thumbs

Jeff



[Justin King]

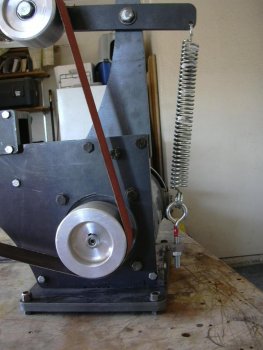

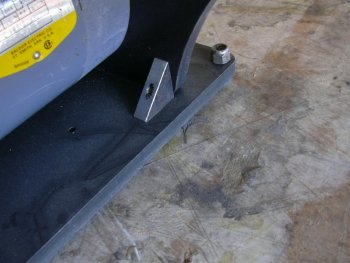

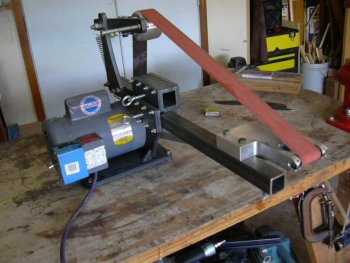

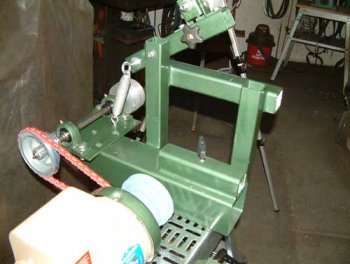

Here's my EERF, with small gussets I fab'd to strengthen the upright since my motor was face-mount only. I also made a little bracket to facilitate an eye-bolt adjustment for the tension spring. I used eye bolts for the clamping knobs also, saved a buck everywhere I could.
The short shaft on my motor made it necessary to mount the small wheel fixture in the work rest slot in order to get things aligned properly. I only have the SWA for now, I am hoping to get wheels for my platen assembly soon.



[BossDog]

John Moore NWG build but welded..

John sent me pictures of his build. It came out pretty clean..



[cwilliams]

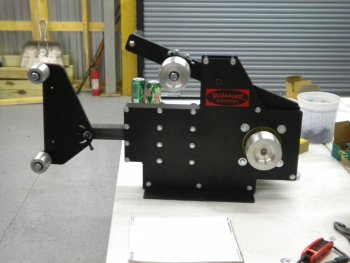

A new grinder I have been working on.



[ArtinNC]

WOW, how did I miss all these fancy and clean grinders????

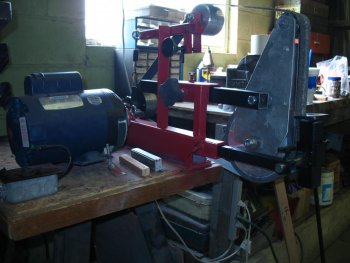

Here is my old junk. Just junk I had out in the barn.

The odder side



[Keith Willis]

Hey ArtinNC,I dont see nothing wrong with either one of those grinders.
Now get to grinding

God bless,Keith
