Dennis Morland
KNIFE MAKER
Cut the copper pins about 1/8 inch long on each side of the guard.
WIP Bowie knife
- Thread starter Dennis Morland
- Start date
Dennis Morland
KNIFE MAKER

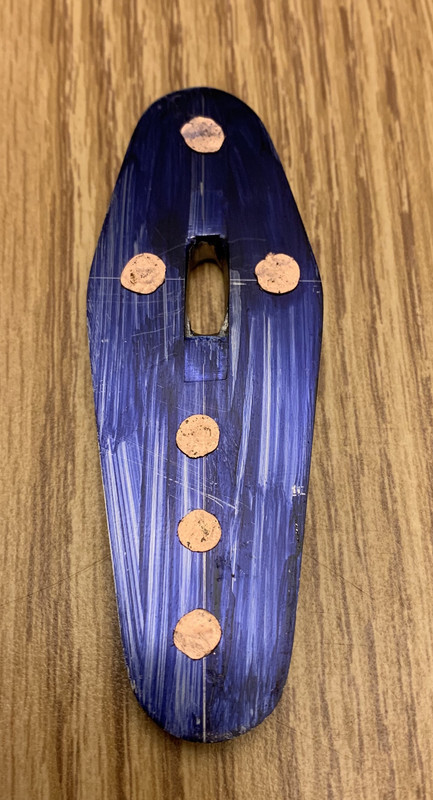

Smashed the pins and then carefully piened them.
Dennis Morland
KNIFE MAKER

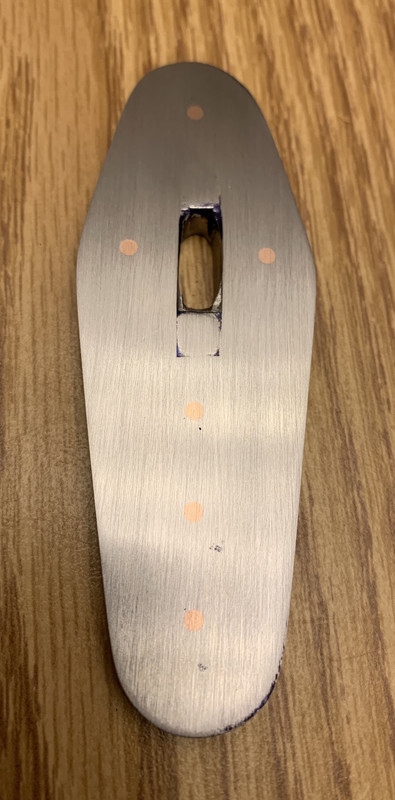

Now all I need to do is sand them flat on a flat plate. I may have to fit the guard, again. But that is no big deal.
Dennis Morland
KNIFE MAKER
I hope you can see the copper inserts. I just used my phone to take the pictures. I chose copper for a reason. Should become clearer when I build the sheath.

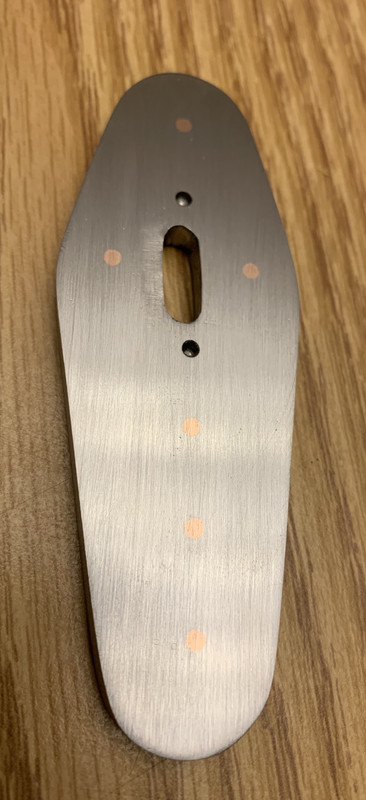

Other side.
Other side.
Dennis Morland
KNIFE MAKER
I am pretty sure I will need to fit the guard, again. So I am going to flute the edge of the guard before doing that.
Dennis Morland
KNIFE MAKER

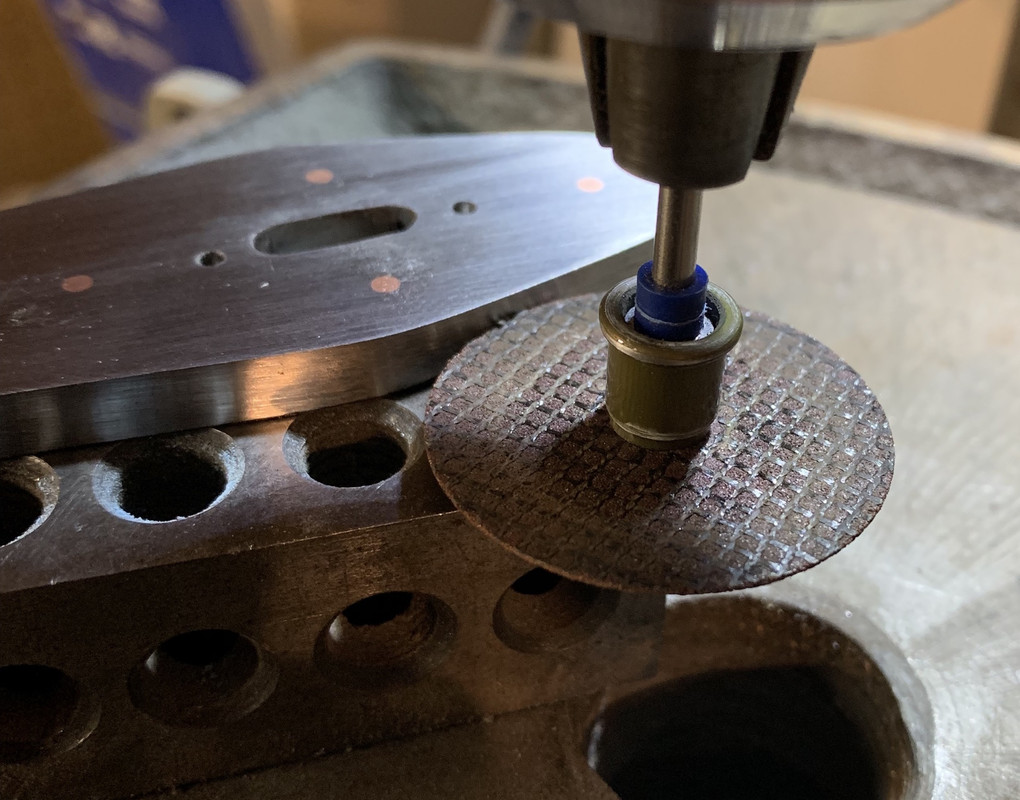

This task is not all that hard. But it is time consuming. First chuck your dremel cutoff tool into your drill press. Set the depth to hit approximately in the middle of the guard. I set it on a 123 block. Easier to spin all the way around the guard. Does not have to be all that deep. Just a consistent mark all the way around.
Dennis Morland
KNIFE MAKER
Looks like this going around one time.
Dennis Morland
KNIFE MAKER

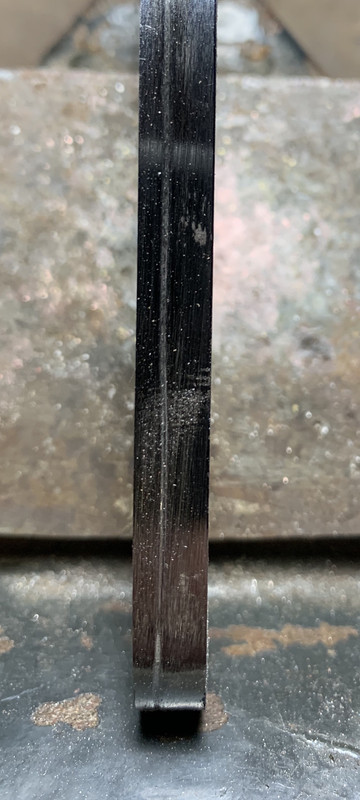

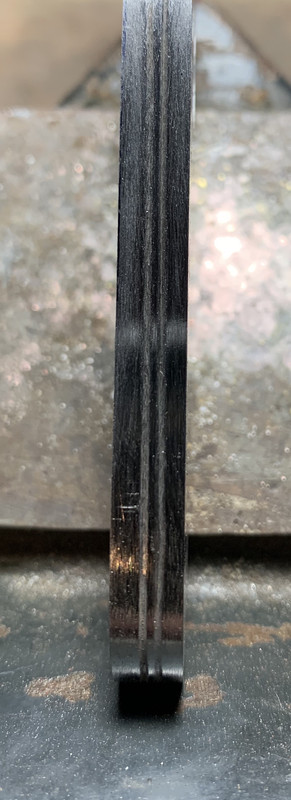

Here is the key tip. Flip the guard over and go around again. Do not move the chuck. Just flip and cut-again. It will look like this.
Dennis Morland
KNIFE MAKER
Now the time consuming part. Take a round file and start removing that material between the two lines. Slow and steady wins the race.
Dennis Morland
KNIFE MAKER

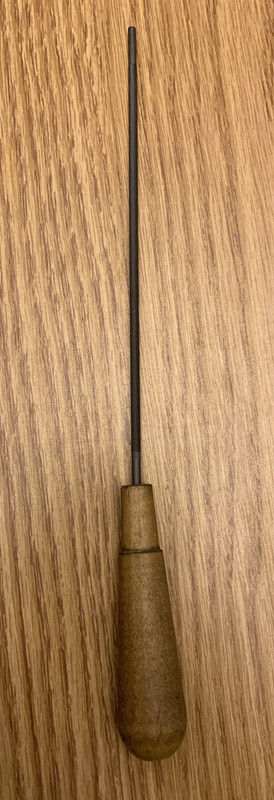

I am using a 1/8 inch chainsaw file. Brand new and ready to cut.
Dennis Morland
KNIFE MAKER

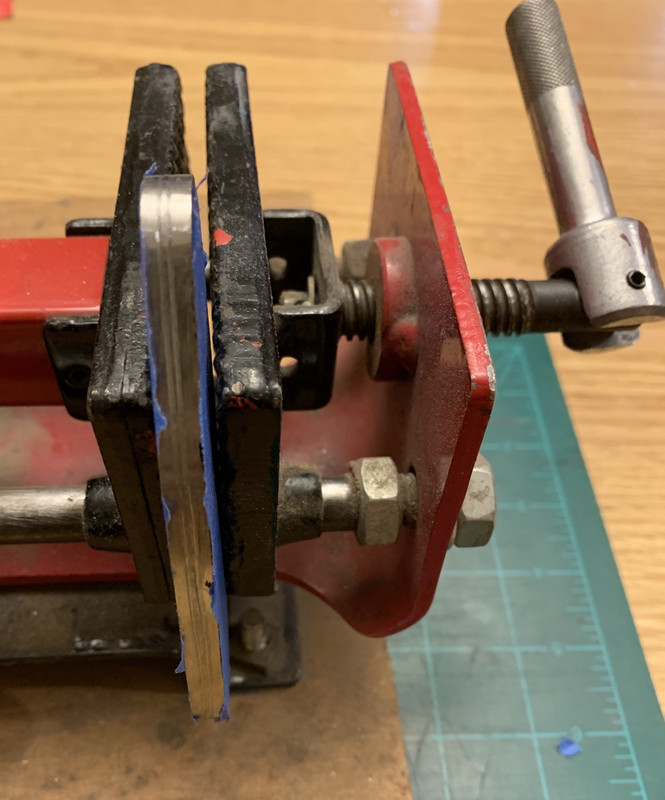

I am using my handy little speedy vise, sitting at the kitchen table, watching some baseball on television. We shall see how much I can get accomplished tonight. Hopefully most of it. I start on the rounded ends.
Dennis Morland
KNIFE MAKER
Doing my best to keep it centered and at a consistent depth. All the way around.
Justin Presson
Well-Known Member
Nice Dennis, I like the little dremel wheel trick on the guard.
Dennis Morland
KNIFE MAKER
It works. Hope it helps someone out.
Dennis Morland
KNIFE MAKER

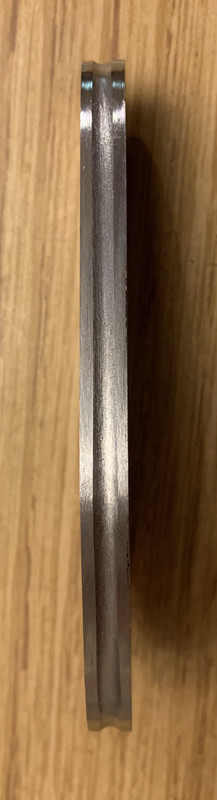

A new file made quick work of that task. Still needs cleaned up with hand sanding. But the bulk is completed.
Dennis Morland
KNIFE MAKER
Stamped.
Dennis Morland
KNIFE MAKER
Other side.
Dennis Morland
KNIFE MAKER
I am on a mission. I have to have the knife and sheath finished by June 1st. A little bit each day will get me there. No rest for the wicked!
