WIP Bowie knife
- Thread starter Dennis Morland
- Start date
Dennis Morland
KNIFE MAKER
Soundmind - I ground of the short eye guards off the shed antler.
Dennis Morland
KNIFE MAKER

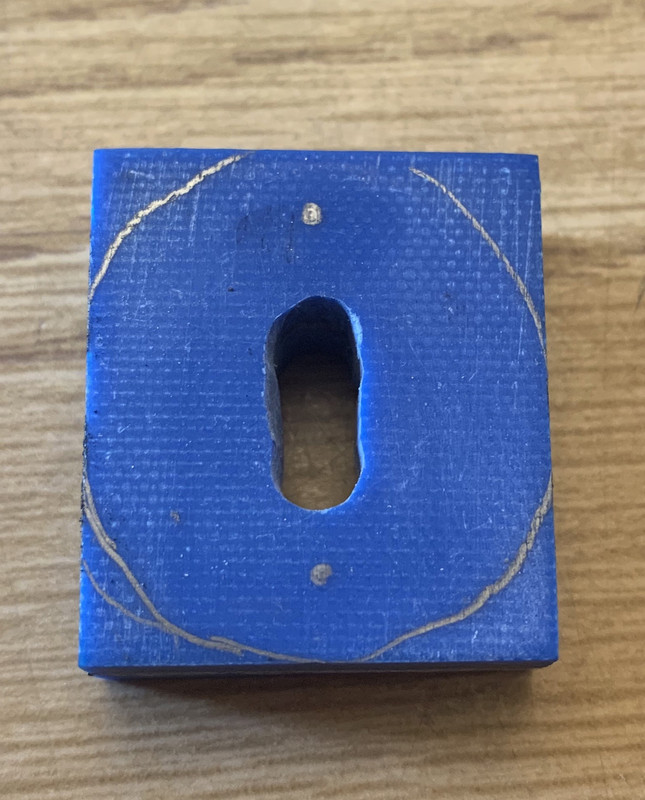

I am going to try and get the spacers rough finished. I like to put two 3/32 inch pins from the guard to the elk. It will strengthen the handle. I want them to meet on the blue dots. First I penciled the outline on the center piece. I will drill the holes on the dots.
Dennis Morland
KNIFE MAKER

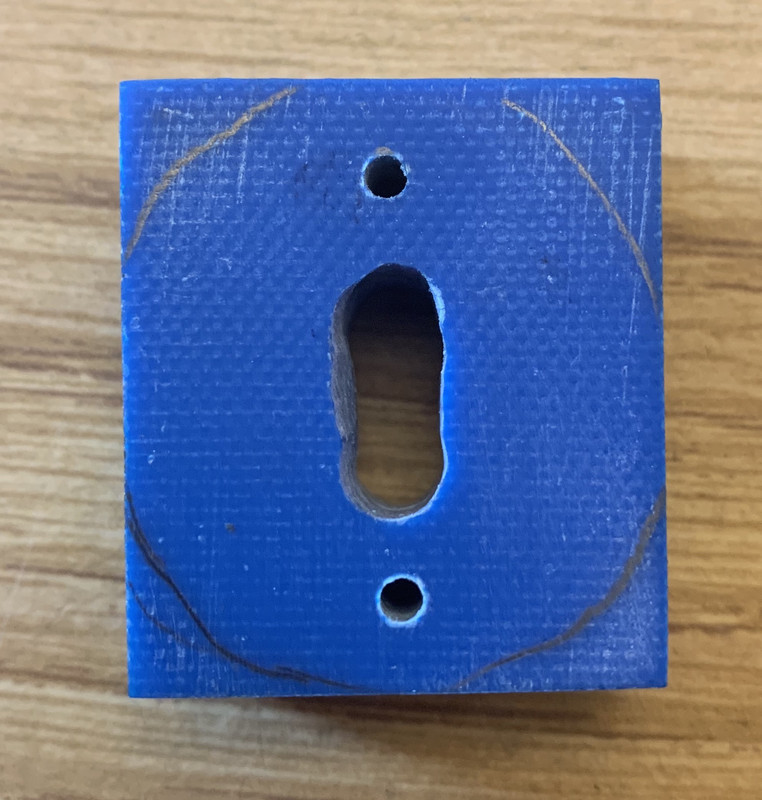

Next, drill the two holes in the center piece.
Dennis Morland
KNIFE MAKER
Line up and drill the top hole through the center piece into the forward piece.
Put in the 3/32 pin. Drill the bottom hole.
Put in the 3/32 pin. Drill the bottom hole.
Dennis Morland
KNIFE MAKER

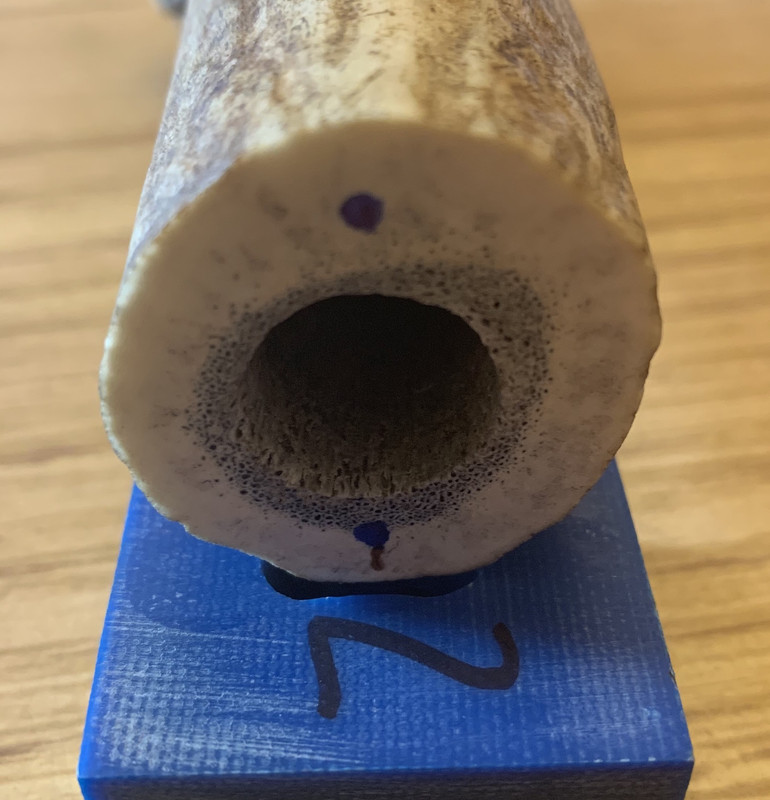

Repeat the above steps with the center and rear piece. Should end up with it looking like this. I still need to drill the hole in the guard ( halfway only) and the elk about a half inch deep.
Dennis Morland
KNIFE MAKER
I can now epoxy the guard together. I will rough shape it when it cures. Tomorrow.
Dennis Morland
KNIFE MAKER

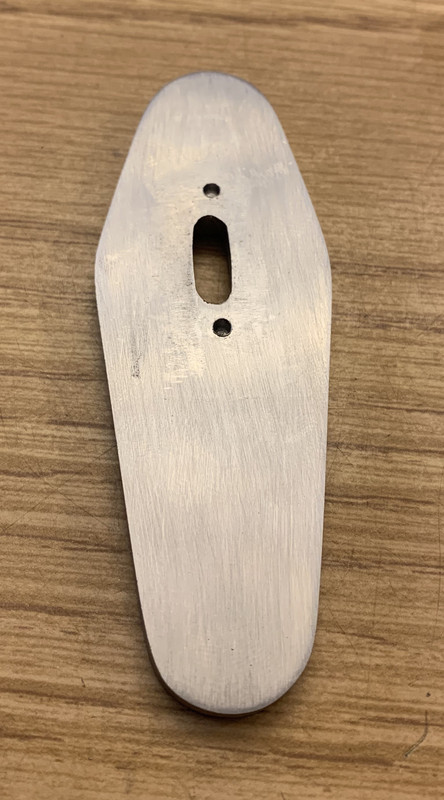

Guard holes are drilled halfway.
Dennis Morland
KNIFE MAKER

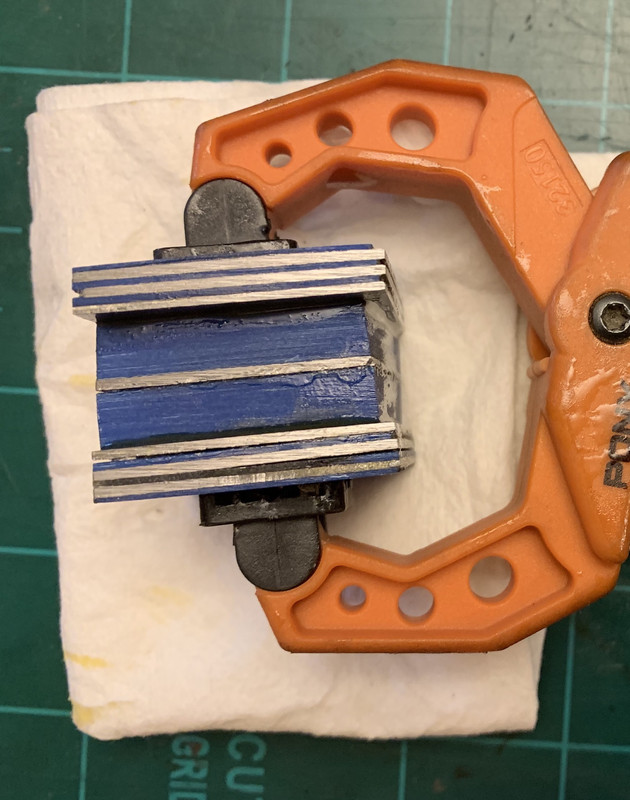

The spacer has been epoxied. Time to cure.
Dennis Morland
KNIFE MAKER
Every once in a while God smiles at me. Tonight, friends stopped by with a gift. Elk horn. I am a very blessed fellow. At least enough for a dozen knives or so. Sweet!!!
opaul
KNIFE MAKER
Great friends indeed!!Every once in a while God smiles at me. Tonight, friends stopped by with a gift. Elk horn. I am a very blessed fellow. At least enough for a dozen knives or so. Sweet!!!
Dennis Morland
KNIFE MAKER
Amen!
Sean Jones
Well-Known Member
This knife is going to be amazing!
Dennis Morland
KNIFE MAKER
I noticed on this picture that there are a couple of gaps in the epoxy day on the left side. I will tear it apart, flatten them, and epoxy again.
Randy Lucius
Well-Known Member
Dang. Glad you caught it now instead of when it was together.I noticed on this picture that there are a couple of gaps in the epoxy day on the left side. I will tear it apart, flatten them, and epoxy again.
That's gonna be one beautiful knife.
Dennis Morland
KNIFE MAKER
Yesterday was a good. Today is a pretty good day, also. Found this little beauty online. Bargain! Still looking for an anvil.
opaul
KNIFE MAKER
Nice. I haven’t seen one with a coil spring like that.Yesterday was a good. Today is a pretty good day, also. Found this little beauty online. Bargain! Still looking for an anvil.
Chris Railey
Well-Known Member
That is a great fix. I am trading a damascus kiradashi for a post vice with a messed up spring. I think I will just search out a coil for it. Brilliant.
Dennis Morland
KNIFE MAKER
Because I had to re-epoxy the spacer I decided to add some bling to the guard, tonight. Copper inserts.

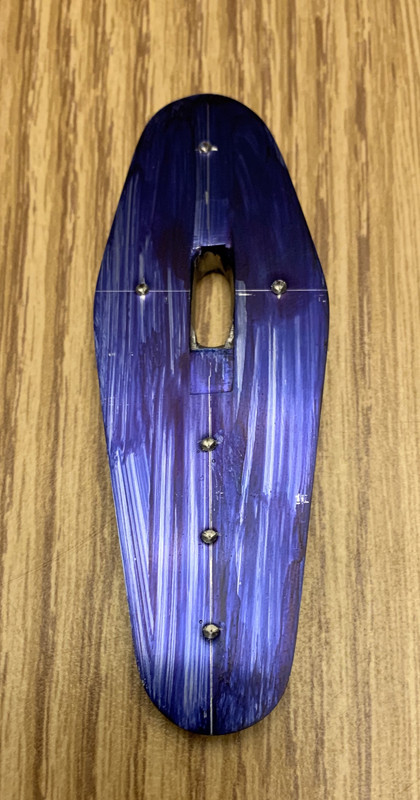

Marked the perpendicular line and the horizontal line using a scribe on blue dykem.
Marked the perpendicular line and the horizontal line using a scribe on blue dykem.
Dennis Morland
KNIFE MAKER
Drilled the holes 3/32.
