Finishing these two up. Scales from Glen Roach!
What's going on in your shop?
- Thread starter Justin Presson
- Start date
mike miller
KNIFE MAKER
bill_clancy
Member
Chris Railey
Well-Known Member
That is sweet BD...
bladegrinder
Well-Known Member
Nice Boss !
SWEET!!
mike miller
KNIFE MAKER
Alden Cole
Well-Known Member

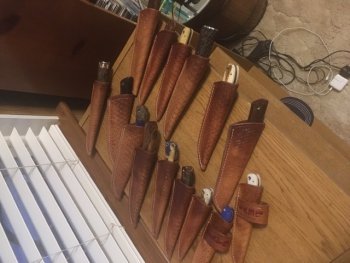

Wow. How do you keep all of your sheath parts organized to go to their respective knife?
mike miller
KNIFE MAKER
I just lay them under respective knife.. Blue and white cowboys get belt straps. Rest are looped and depend on size of loop according to knife.
This is a Proxon Pantograph. They run around $230 on Amazon. The rotary tool is another $110 so for $340 you get a mini pantograph.
We have been testing one here and the results are encouraging.
These do have to be modified a bit. We are using 4 to 1 reduction from pattern to work piece. The stylus has to be modified (replaced) to be 4 times larger than the cutter so everything fits. Not a huge problem but you need a lathe. The black pieces are a shield pattern that has a positive and negative. We print these on our 3D printer and will be making these for sale in the near future.
In a nut shell, you use the negative pattern to make a hollow spot in your knife handle and the positive pattern to cut out your insert.
The depth and insert each don't need to be more than .040" and you can probably get by with less.
This is too dainty of a tool to cut metal like stainless or titanium. This is for micarta, bone, MOP, etc.
HOWEVER, I managed to cut a shield out of .041" nickel silver and that makes it good enough. We just glue the donor metal to a scrap of micarta and slowly mill our way around the positive pattern. The cutter is only 1/32". Push it too hard and you will break it. The whole tool is wobbly and light weight. A practiced delicate touch makes a difference and you will get the hang of it in one or two tries.
A utility blade is used to pop off the shield.
This was my first attempt and I left a little burr on the edge. A few strokes on some sand paper cleans it up.
The far left insert is white g10. The insert on the right is the one I just cut out. The gap around the insert in this case was fairly big and a deal breaker as far as I was concerned but a little super glue over the gap and some sanding filled that in nicely and it looks as tight as I see most inlay's. With some practice I think these could be dead on.
We have some more testing to do but at this point I am pretty encouraged. It will take user technique and practice. This tool is small, light weight and not meant for serious production work but it will do the job for the occasional inlay. Look on Chris Crawford's facebook page for a recent post about these. When he posted this article, we had ours on order and it arrived a few days later so it timed out perfectly for us and we pretty much copied what someone else had already done. If you are near us, Luke will do a demo at the Midwest Knifemakers Guild here for our October 17 meeting.
We have been testing one here and the results are encouraging.
These do have to be modified a bit. We are using 4 to 1 reduction from pattern to work piece. The stylus has to be modified (replaced) to be 4 times larger than the cutter so everything fits. Not a huge problem but you need a lathe. The black pieces are a shield pattern that has a positive and negative. We print these on our 3D printer and will be making these for sale in the near future.
In a nut shell, you use the negative pattern to make a hollow spot in your knife handle and the positive pattern to cut out your insert.
The depth and insert each don't need to be more than .040" and you can probably get by with less.
This is too dainty of a tool to cut metal like stainless or titanium. This is for micarta, bone, MOP, etc.
HOWEVER, I managed to cut a shield out of .041" nickel silver and that makes it good enough. We just glue the donor metal to a scrap of micarta and slowly mill our way around the positive pattern. The cutter is only 1/32". Push it too hard and you will break it. The whole tool is wobbly and light weight. A practiced delicate touch makes a difference and you will get the hang of it in one or two tries.
A utility blade is used to pop off the shield.
This was my first attempt and I left a little burr on the edge. A few strokes on some sand paper cleans it up.
The far left insert is white g10. The insert on the right is the one I just cut out. The gap around the insert in this case was fairly big and a deal breaker as far as I was concerned but a little super glue over the gap and some sanding filled that in nicely and it looks as tight as I see most inlay's. With some practice I think these could be dead on.
We have some more testing to do but at this point I am pretty encouraged. It will take user technique and practice. This tool is small, light weight and not meant for serious production work but it will do the job for the occasional inlay. Look on Chris Crawford's facebook page for a recent post about these. When he posted this article, we had ours on order and it arrived a few days later so it timed out perfectly for us and we pretty much copied what someone else had already done. If you are near us, Luke will do a demo at the Midwest Knifemakers Guild here for our October 17 meeting.
Gliden07
Well-Known Member
Great work! Beautiful Scales!!
J. Doyle
Dealer - Purveyor
mike miller
KNIFE MAKER

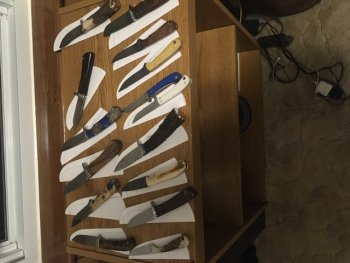

All cut out. 5 stamped 10 to go. Not bad. Hard part 7 are of 9-10 oz and they are a bugger to cut.That looks like pure torture to me.
bladegrinder
Well-Known Member
Your going to need a vacation after finishing all those Mike. I hate busting out all the leather stuff for one knife, but I also hate having to do more than say 3-4 at a time.
Alden Cole
Well-Known Member
Finished my third spring back folder. Really liking these folders (usually known as slipjoints). According to a good friend of mine, (one of the early members of the Knifemakers Guild), the term slipjoint is a misnomer, as it originally was applied to slipjoint pliers. If you think about it, spring back folders don't really have a joint to slip. Apparently someone misused the term in a knife magazine and it stuck. Think I got the story right. Just an explanation for why I don't refer to them as slipjoints anymore, thought maybe someone would find it interesting, and that's what is going on in my shop!
mike miller
KNIFE MAKER
Attachments
Gliden07
Well-Known Member

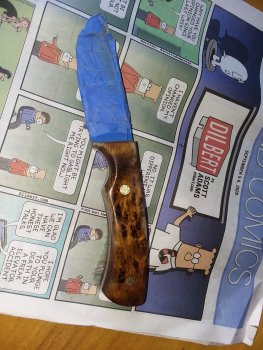

Hawk I just need to put 1 more coat of Tru-Oil on. This was a proof of concept piece for a friend who's a Bounty Hunter. Not bad for stuff I had laying around. Need to increase lenth of blade in front, make the angle a little steeper an make the point on front stouter. But it feels good in hand. Was fun making it too. Something different!
