New Model folder the Phoenix

Chuck Gedraitis Knives

Well-Known Member
This is a new model I call this the phoenix and it has a little Bob Lum inspiration.

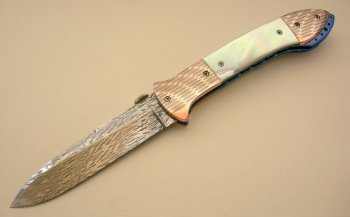

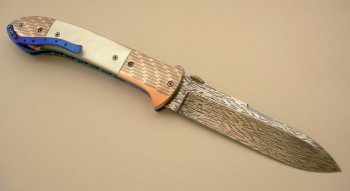

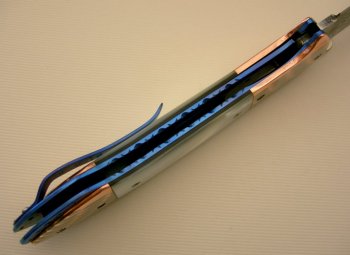

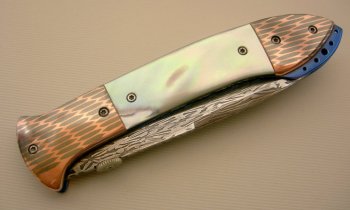

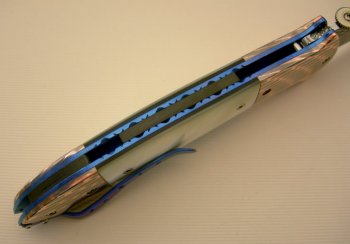

The blade is 4-1/8 in long, 7/8in wide and made from Dave Lisch mosaic damascus. The front and rear bolsters are copper niobium. The scales are white mother of pearl with great color. The liners are titanium that have been fileworked, selectively textured and anodized light blue. The 2 piece back spacer is carbon fiber and the knife opens with a thumb disc. I took a lot of time working on the pocket clip and incorporated it using some of the exposed holes in the frame. If the clip is removed there is no evidence that there was a clip there. I also added some holes and anodized it blue. The overall length open is 9-3/8 and closed it is 5-3/16.
Thanks for looking,
Chuck


Attachments

  • Phoenix folder inside.jpg
    Phoenix folder inside.jpg
    86.9 KB · Views: 48
  • Phoenix folder.jpg
    Phoenix folder.jpg
    81.8 KB · Views: 72
  • Phoenix folder b.jpg
    Phoenix folder b.jpg
    84 KB · Views: 63
  • Phoenix folder back.jpg
    Phoenix folder back.jpg
    83.1 KB · Views: 58
  • Phoenix folder closed.jpg
    Phoenix folder closed.jpg
    88 KB · Views: 51
Chuck, that is one beautiful piece of workmanship. It is obvious that you spent a lot of time perfecting it. Well done!
