My second Slipjoint

Discussion in 'Folding Knives Forum' started by KCorn, Dec 17, 2017.

  1. KCorn

    KCorn Well-Known Member

    [​IMG] [​IMG]

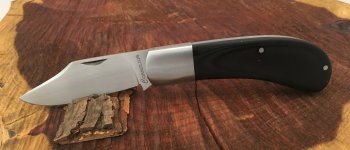

    I just completed my second slipjoint pocket knife today. Mill relieved liners, G-10 caps and 410 stainless bolsters. Seems like I've been working on it forever. This Lanny's clip is for my Dad for Christmas. These little things are addicting!! Let me know what you guys think.


    Attached Files:

    KenH and Johan Nel like this.
  2. Johan Nel

    Johan Nel Well-Known Member

    Beautiful! Well done.

  3. John Wilson

    John Wilson Well-Known Member

    looks great! If you had to guess, how many hours went into it?

  4. Dennis Morland

    Dennis Morland KNIFE MAKER

    That is a great gift. Your father should have an awesome Christmas.

  5. C Craft

    C Craft Well-Known Member

    Awesome somebody is gonna be ecstatic Christmas morning!!! That is a great look 2nd one or not!! I wouldn't have been able to tell if you hadn't said anything!!

  6. KCorn

    KCorn Well-Known Member

    Thanks Guys! John, I really have no idea how many hours I have in it. I would guess probably 12-15. That does include starting over at one point on the liners as the set I originally made I scrapped because I had messed up one side when I relieved the liners.

  7. John Wilson

    John Wilson Well-Known Member

    fantastic job. it came out super nice.

  8. KCorn

    KCorn Well-Known Member

    Here is a view of most of the parts in various degrees of finish. Thought y'all might enjoy.
    [​IMG] where to host images

  9. KenH

    KenH Well-Known Member

    Is that jeweled inside of liners? I like the looks - I'll have to remember that for my next slipjoint.

  10. Craig

    Craig KNIFE MAKER

    Your Dad will be proud.

    A couple down and many more to go.

  11. KCorn

    KCorn Well-Known Member

    KenH- it is indeed jeweling. It was a good thought I think but it is very hard to see it once it's all put together. I just think it's kinda cool when people put in the work on the tiny details that may never be noticed. That being said I'm not sure I would do it again. Lol!

  12. Oze

    Oze Active Member

    Great result. Hope mine comes out half as good as that. What did you use to make your pins from?

  13. KCorn

    KCorn Well-Known Member

    Pivot pin was 1/8" 416 stainless and the spring pins were 3/32" of the same material. Good luck on your slippie. Let me know if I can be of any help!

  14. Oze

    Oze Active Member

    Cheers. The pins are hardened presumably?

  15. KCorn

    KCorn Well-Known Member

    Oze, the pins are used as is. They are not hardened. To my knowledge 416 pin stock can be hardened to some degree but does not come that way from most knife supply companies. Maybe someone else can comment on this?

  16. Oze

    Oze Active Member

    OK. Thankyou.
