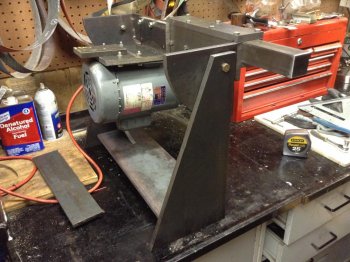

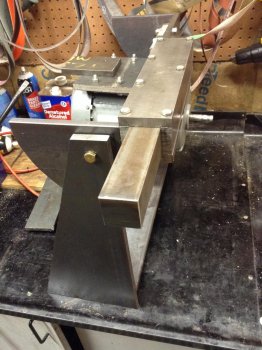

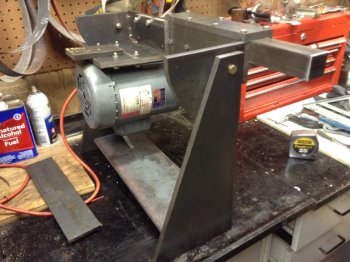

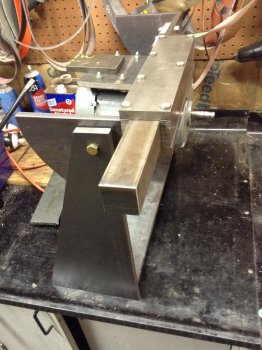

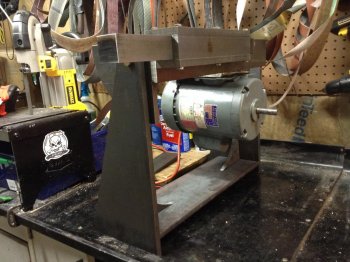

I decided to make myself a grinder, all I have now is a 2x42. I have outgrown it to say the least. I don't have 3k+ for one right now, so this is the road I'm taking.
I not a metal project guy, I took some ideas from whats out there. I have a 1hp on there now until XMas then I'll treat myself to a VFD setup. I made a bracket to mount a 56c face when Im there.
I know it seems tall, Im welding a cart with wheels to grind outside when I can. It also will have a 16''in sq plate on the bottom.

Working on the tracking wheel mount and ordering a tension shock and an idea to lock the vertical and horizontal position. Think I have a running start so far, any input appreciated. Thanks


Attachments

  • IMG_0753.jpg
    155.5 KB · Views: 157
  • IMG_0754.jpg
    156 KB · Views: 135
  • IMG_0750.jpg
    154.6 KB · Views: 137
  • IMG_0751.jpg
    154.2 KB · Views: 132
  • IMG_0752.jpg
    156.6 KB · Views: 139

JawJacker

Well-Known Member
Trying to decide on the tracking wheel design. What is, if any the difference with some I see that track up and down VS left and right, any advantages???


JawJacker

Well-Known Member

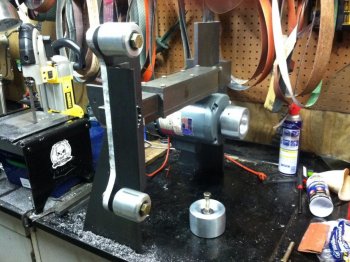

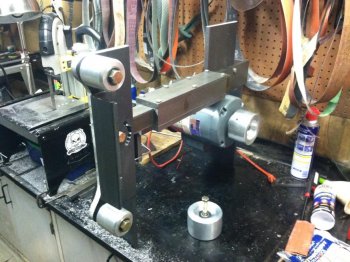

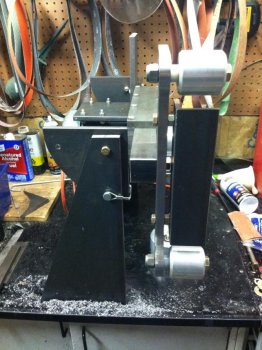

Update, been very busy at work, my wheels came in. Platen almost done that slot for the angle is a bear. I'm trying to decide on a shock or compression spring for belt tension. I want to buy a cooling platen from PM if he's still doing them.

I was thinking about a ball screw belt tension idea, but as I'm so busy lately I may just go with the above mentioned.
