Benjy's KITH BUILD

Benjy

Well-Known Member

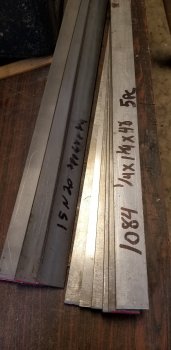

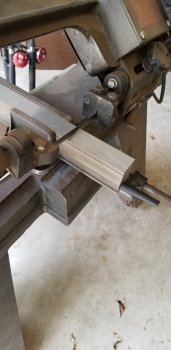

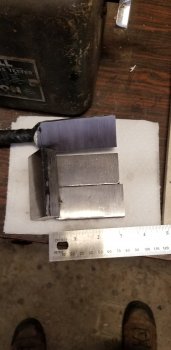

So, I have started on my KITH project, i started making the metal this weekend. I started out with some 1084 and 15N20. I cut and stacked up 2, 13 layer billets. Forge welded them, drew them out, cut them into 4 pieces, restacked and forge welded them back together.
We now have 2 billets at 52 layers each. I forged them into a 1" round bar, i twisted one clockwise and the other counter clockwise. I then forged them into a 3/4" square bar around 18" long.
Anyone know what Damascus pattern i am attempting?
In the process, i dulled my band saw blade, broke a die clamp on my press and burnt up the motor on my belt sander.


Attachments

  • 20200905_120439.jpg
    1 MB · Views: 8
  • 20200905_122252.jpg
    893.5 KB · Views: 8
  • 20200905_141220.jpg
    849 KB · Views: 10
  • 20200906_095316.jpg
    1.2 MB · Views: 10
  • 20200906_100044.jpg
    1,010.6 KB · Views: 10
  • 20200906_101000.jpg
    1.2 MB · Views: 8
  • 20200906_102943.jpg
    669.2 KB · Views: 8

Benjy

Well-Known Member
More pictures


Attachments

  • 20200906_111904.jpg
    1.2 MB · Views: 5
  • 20200906_161440.jpg
    1.1 MB · Views: 5
  • 20200906_161444.jpg
    849.7 KB · Views: 5

Dennis Morland

KNIFE MAKER
Not sure of the pattern but I will be following along. Should be an awesome ride. Looking forward to seeing how this turns out.


Benjy

Well-Known Member
Haha, twisted sister, i like it!

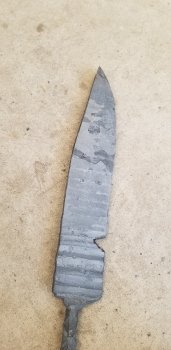

This is my first attempt at a turkish twist, this is a far as i could get with all my equipment failures.
I will have to do some repairs next week end so i can finish up the billet.

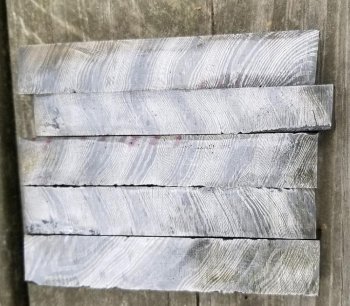

I hope to have 7 rows/bars of twist. Looks pretty cool afer a quick etch.


Attachments

  • 49597.jpeg
    216.5 KB · Views: 14

Greg Rice

Well-Known Member
Wow - so very cool! I would like to think that maybe one day... but who am I kiddin'? I will make 'twisted sister' damascus through watching you! Keep the info coming!!!


Benjy

Well-Known Member

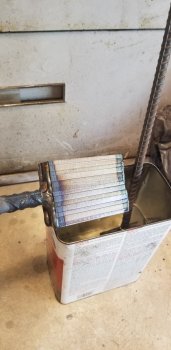

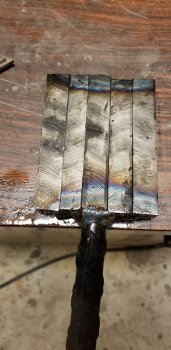

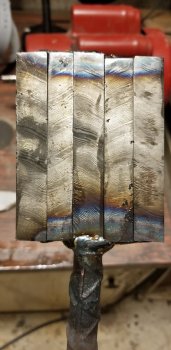

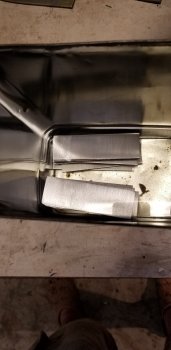

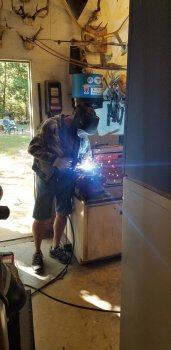

I have all my equipment up and running, filled up the propane tank, cleaned and welded the billet together. Hopefully, i can get this welded and forged to shape tomorrow! I can't believe how much steel is "sacrificed " with this pattern!


Attachments

  • 20200912_201339.jpg
    1.3 MB · Views: 5
  • 20200912_201326.jpg
    1.3 MB · Views: 5

Benjy

Well-Known Member

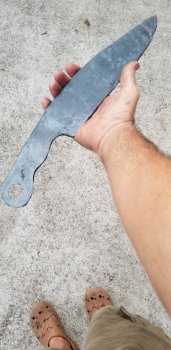

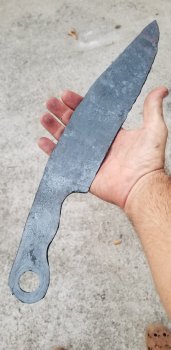

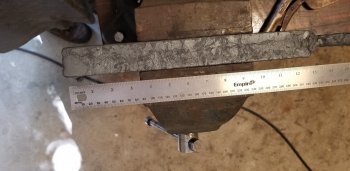

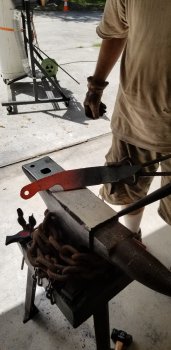

I had a good day, i forged the 5 bar stack and made what appears to be a nice billet. I also forged it to shape. I left it in the forge to anneal it. I put a couple videos on Instagram. I will put some good profile pictures up when the blade cools off.


Attachments

  • 20200913_125742.jpg
    1.4 MB · Views: 10
  • 20200913_142429.jpg
    1.1 MB · Views: 12
  • 20200913_142829(0).jpg
    1.1 MB · Views: 14

Benjy

Well-Known Member

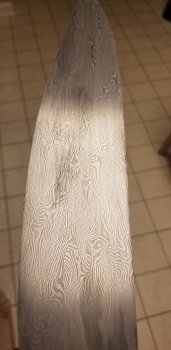

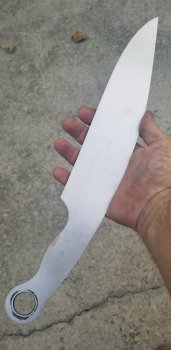

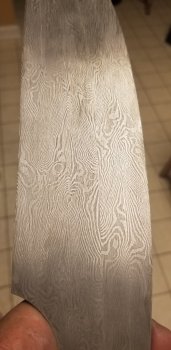

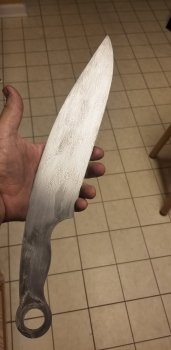

I cleaned up the profile and ground out the forge marks on the blade, of course i had to do a quick etch to see what the pattern looks like.
Next, a little more grinding, drilling pin holes stamping my makers mark and some file work on the back of the handle. I will do the heat treat this weekend.


Attachments

  • 20200914_191958.jpg
    1.3 MB · Views: 11
  • 20200914_192045.jpg
    1.1 MB · Views: 11
  • 20200914_192056.jpg
    877.3 KB · Views: 12
  • 20200914_190134.jpg
    866.1 KB · Views: 10

Benjy

Well-Known Member

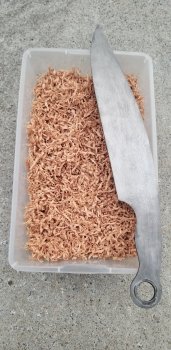

I started working on the handle scales, i picked out a nice piece of cherry, fired up the chain saw and shreaded up about 2 gallons of shavings!:oops::oops::oops:


Attachments

  • 20200915_192000.jpg
    1.7 MB · Views: 1
