strips of cotton bed sheets.......20 or so in total
cover wooden jig in a little vaseline and wax paper

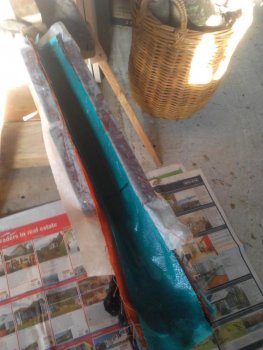

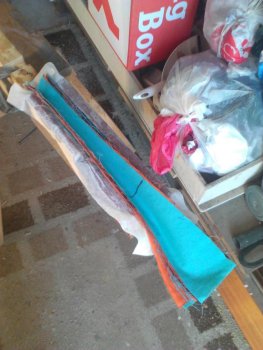

nail one end with a little over hang at the other end and now ready to epoxy resin together

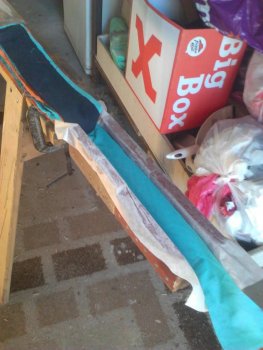

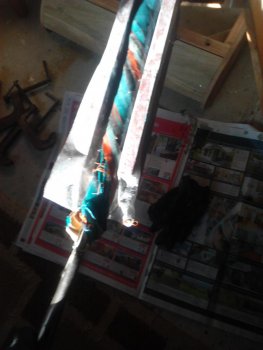

after all are resined up, i use vise grip to clamp the over hang end and twist a little
fold over wax paper and clamp down for a day or two

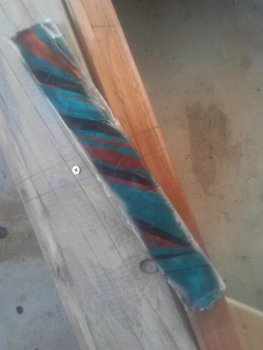

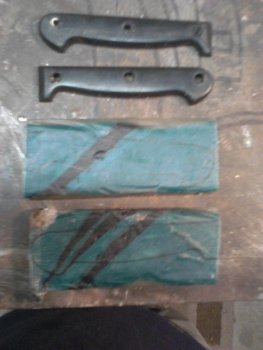

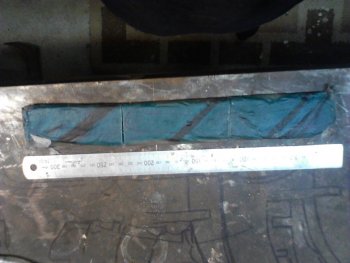

remove from wooden jig, should look like this and end up rock hard
cover wooden jig in a little vaseline and wax paper
nail one end with a little over hang at the other end and now ready to epoxy resin together
after all are resined up, i use vise grip to clamp the over hang end and twist a little
fold over wax paper and clamp down for a day or two
remove from wooden jig, should look like this and end up rock hard
