What's going on in your shop?

coachk

Active Member

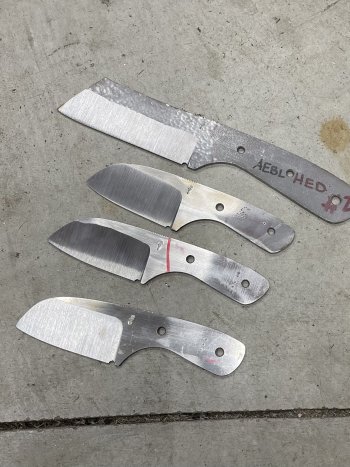

I'm gonna try and finish these 2 up this weekend


Sent from my SM-G981V using Tapatalk


Gliden07

Well-Known Member

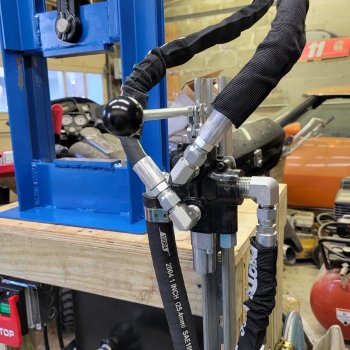

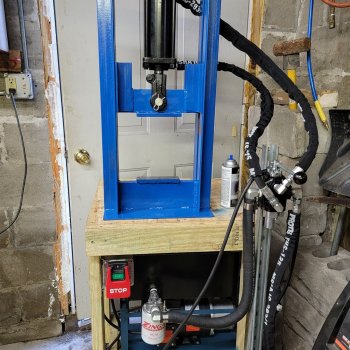

I built me a 12T press! Just finished it other than squishing some wood haven't done a real test! I think first project is gonna be stretching out the riengs on some Ken's Custom Iron Tongs that I need to finish!!


Attachments

  • IMG_20210922_085844_369.jpg
    303.4 KB · Views: 9
  • IMG_20210922_085844_439.jpg
    225.8 KB · Views: 9

MTBob

Well-Known Member
I built me a 12T press! Just finished it other than squishing some wood haven't done a real test! I think first project is gonna be stretching out the riengs on some Ken's Custom Iron Tongs that I need to finish!!
How about a video with sound to hear it run? How do you control over pressure in the system, is there a pressure regulator?


Gliden07

Well-Known Member
How about a video with sound to hear it run? How do you control over pressure in the system, is there a pressure regulator?
I tried to post a video but it said it was to large of a file. The pressure is set right now at 2000LBS I can turn it up if I want but was going to wait and see how it works. I do have a gauge on it to track the pressure to turn it up or down if I have to.


MTBob

Well-Known Member
I tried to post a video but it said it was to large of a file. The pressure is set right now at 2000LBS I can turn it up if I want but was going to wait and see how it works. I do have a gauge on it to track the pressure to turn it up or down if I have to.
What's the maximum pressure without busting something?
This looks like a fun project this winter. The only problem is that I doubt I'm smart enough to make a blade with a press.


Gliden07

Well-Known Member
What's the maximum pressure without busting something?
This looks like a fun project this winter. The only problem is that I doubt I'm smart enough to make a blade with a press.
Max pressure for the pump is 3500PSI all other components are rated for that or higher. I wouldn't trust the frame much past the rating ot the Hydraulic system now so maybe 13T. It you wanted heavier I would use the 3x3x3/8" angle iron and would bump the cross pieces with a solid 1" plate on the bottom and ram end to beef it up and facilitate quick change dies.


MTBob

Well-Known Member
Max pressure for the pump is 3500PSI all other components are rated for that or higher. I wouldn't trust the frame much past the rating ot the Hydraulic system now so maybe 13T. It you wanted heavier I would use the 3x3x3/8" angle iron and would bump the cross pieces with a solid 1" plate on the bottom and ram end to beef it up and facilitate quick change dies.
If I work up enough gumption to make a press someday, would you be willing to share the parts list?


Taz575

Well-Known Member
Yes, I made the material with a marine epoxy, carbon fiber fabric, burlap and a press. Its badically a home made micarta. Soak fabric, mix and squish!
