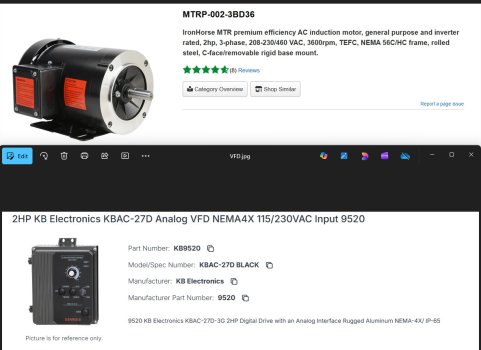

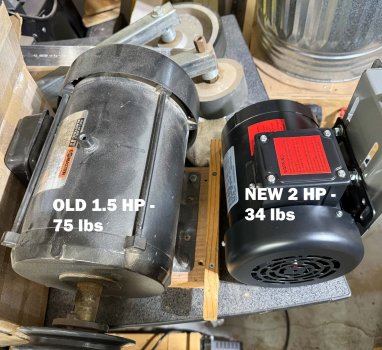

These seem to be pretty popular choices for motor and controller. Anyone have pics when they wired theirs up? I have a KMG set up I could look at for example but thought maybe someone here has done this already. Pics show the VFD and Motor Thanks Larry.


Larry, I guess my coffee hasn't kicked in yet, but I'm a bit confused about what you're asking. Are you saying you have an existing KMG that has a 3ph motor with a KBAC VFD that's working. KMG has a good setup there for sure.

Are you asking how to wire up an additional 3ph motor and KBAC drive? Will this go on a 2nd 2X72 grinder? Or perhaps a disk grinder? Are you needing wiring info? Or, perhaps ideas on how to mount the KBAC drive for a grinder?

I'm sure your question is clear to you (and perhaps other folks), perhaps it's just my coffee hasn't kicked in yet.

Ken H>

KenH said:
Larry, I guess my coffee hasn't kicked in yet, but I'm a bit confused about what you're asking. Are you saying you have an existing KMG that has a 3ph motor with a KBAC VFD that's working. KMG has a good setup there for sure.

Are you asking how to wire up an additional 3ph motor and KBAC drive? Will this go on a 2nd 2X72 grinder? Or perhaps a disk grinder? Are you needing wiring info? Or, perhaps ideas on how to mount the KBAC drive for a grinder?

I'm sure your question is clear to you (and perhaps other folks), perhaps it's just my coffee hasn't kicked in yet.

Ken H>
Click to expand...
Sorry the new motor and VFD for my SECOND grinder is what I pictures of above and I was needing help with. If you or someone else has wired these up and took pics I would love to see them. Otherwise I thought I could look at my KMG set up and try and follow that set up. I would guess its similar. Anyway sorry for the confusion. -Larry

You might look inside the plate on the side of the motor. Mine is similar but 110 instead of 220. If you don't have a wiring diagram for the KBAC I believe I have one. I'll need to look for it. I'll check back in a while and let you know.

Sean Jones said:
You might look inside the plate on the side of the motor. Mine is similar but 110 instead of 220. If you don't have a wiring diagram for the KBAC I believe I have one. I'll need to look for it. I'll check back in a while and let you know.
Click to expand...
Thanks Sean I think I have one. Appreciate it

OK, I understand a bit better now (coffee's kicked in?). AS Sean said, you'll need to look at the motor nameplate to check the wiring there. It'll show low voltage ( 220vac which is what you'll want) and high voltage (460vac).

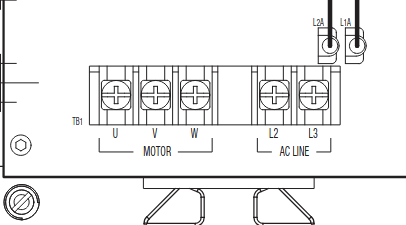

The KBAC manual has pretty good wiring info - the motor will have 3 wires (4 counting ground). The 3 "hot" wires will go to the U V & W terminals on the left side, and the AC input to the right side with the two "hot" wires to L2 & L3. That numbering is interesting, I'd expect to see L1 & L2 for the inputs. Yes, your existing KMG would (should) be a good "go by" to wire up the new setup.

KenH said:
OK, I understand a bit better now (coffee's kicked in?). AS Sean said, you'll need to look at the motor nameplate to check the wiring there. It'll show low voltage ( 220vac which is what you'll want) and high voltage (460vac).

The KBAC manual has pretty good wiring info - the motor will have 3 wires (4 counting ground). The 3 "hot" wires will go to the U V & W terminals on the left side, and the AC input to the right side with the two "hot" wires to L2 & L3. That numbering is interesting, I'd expect to see L1 & L2 for the inputs. Yes, your existing KMG would (should) be a good "go by" to wire up the new setup.
View attachment 86199
Click to expand...


Yeah I will get after this soon. Putting the grinder together first, and then the wiring will come next. Thanks for the help. -Larry

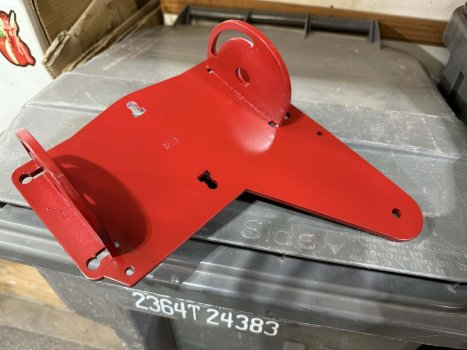

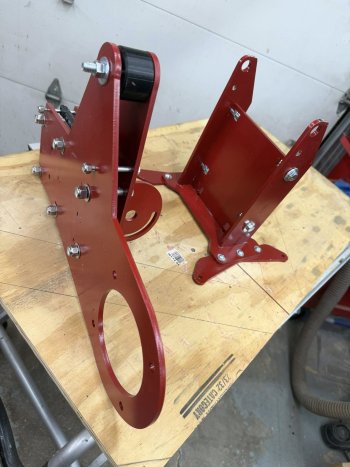

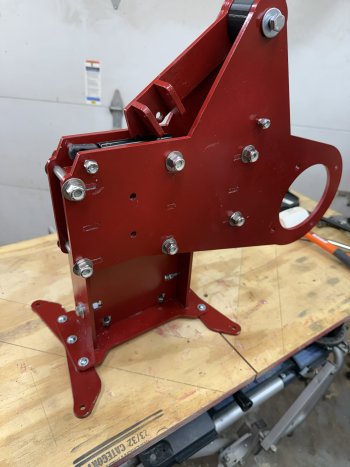

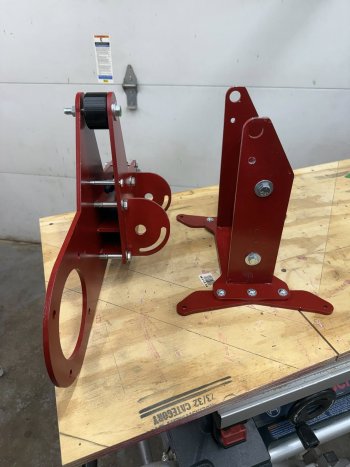

Went red on the frame for this one.
