Make Do Knife Sanding Clamp

opaul

Well-Known Member
Until I can get one of those fancy sanding knife clamps, this is what I have been using. A wooden screw clamp in my vise (the vise is only temporarily mounted right now).
When I need to sand the top and bottom of the blade I put the wood clamp flat on the vise and clamp it down with a steel c-clamp. So far it works good. What do you guys use?


Vombrown

Banned
Scrap 2" tubing, 1/2" bolt and nut and cover plate to clamp it down. I've not made any but the ones I have seen weren't complicated at all. I'll be making a few here shortly if you guys want a few I can make extras.


Von Gruff

KNIFE MAKER

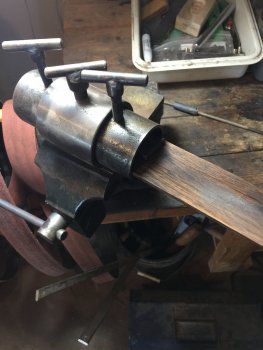

This is my sanding set-up. The pointed end allows for support for a the blade but protection from stabbing myself on the point of the blade. I made the camp from a section of channel iron, and have another 20 or so that are for clamping the knife handles when they are epoxied on.

My knife press for doing handle work is a different set up alltogether and allows for turning to get to all parts of the handle and is what I think Vombrown is talking about


DanF

Well-Known Member
I use this for final hand sanding prior to scales or handle installation.
This is for scale/handle work.


Chris Railey

KNIFE MAKER
This us my sanding set up. Thick piece if 1075 a HF hold down clamp and two nails. I like that I can slide it back out of the way when I do not use it. Really hurts when you walk into it.D8D27155-4341-4A62-8142-CA7E93261A05.jpeg4BF3296B-889C-40E6-9C0E-939E92D53295.jpeg13C8FE41-E206-42A9-817F-88284948B02A.jpeg64B2081F-2B6E-4ACB-A107-1F7176570F0F.jpeg


scott.livesey

Dealer - Purveyor
i have some 2" angle iron with threaded 1/4" or 6mm holes. holes in tang are same size and have same spacing. bolt blank to angle iron. use it to sand and file


Vombrown

Banned
guys I picked up some materials today to build a couple of the square style knife vises. I'll post some pictures as I go along. Shouldn't take long to do.
