D-D Extreme Tilt Work / Tool Rest

BobbyD

Well-Known Member
The work rest will raise/lower, cant left/right, move left/right, tilt forward/back and the table can be mounted in a vertical position.

Table will adjust from horizontal to almost vertical (10 degrees from platen). Great for swedge and scandi grinds.

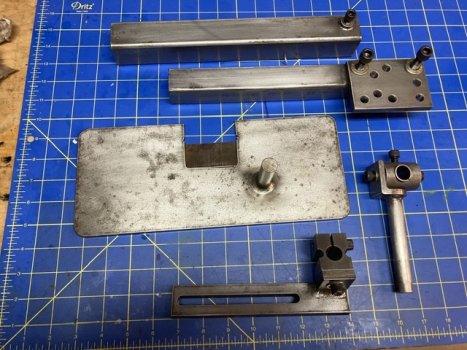

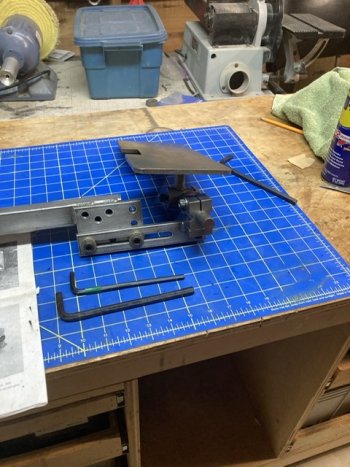

Work Rest Includes:

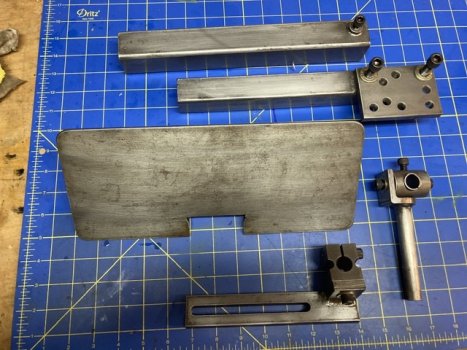

-Table is 12" x 5" with a 2-3/8” wide x 1” deep belt cutout and relieved on the backside so the rest can be positioned closed to the platen at all angles.

-Adjustable Cam/Shaft Assembly.

-Square Tubing Tool Arm and Slotted Tool Arm with Adjusting block with all necessary mounting hardware.

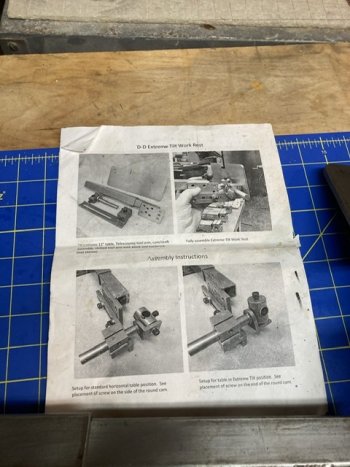

-Allen wrenches and Instructional Pamphlet

Steel Construction- no plastic or aluminum parts to break

Multiple adjustable points allowing endless work rest setup angles

Non-marring inner locking shaft sleeve for lasting smooth adjustability

Rest is in very good condition. Only damage if you want to call it that is on the edges of slot in the table from the edge of belt
150.00 + shipping
thanks for looking.
